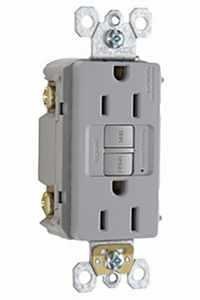

Legrand radiant 1597GRYCCD12 GFCI Duplex Receptacle, 125 V, 15 A, NEMA: NEMA 5-15R, Gray
no reviews for this product. Login to place a review.
PRODUCT OVERVIEW
The radiant(R) collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screw less wall plates that complement today's homes. The self-test GFCI conducts an automatic test every 3 s, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock(TM) protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected.
Product Details
Color:Gray
Current Rating:15 A
Dimensions:1.62 in W x 1.13 in D x 4.19 in H
Material:Nylon/Plastic
Mounting Type:Wall
Nema Rating:NEMA 5-15R
Number Of Wires:3
Type:Self-Test Specification-Grade
Voltage Rating:125 V
Wire Size:14 AWG
Features
Part of the radiant(R) collection
New external backwire pressure plates
New posted terminal screws for faster installation
Conducts an automatic test every 3 s ensuring it's always ready to protect and if the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
Equipped with proven SafeLock protection feature
Redesigned side wire cavity improves speed of side wire installation Feed-thru wiring configuration allows GFCI to protect downstream
receptacles
Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- U/M
- / EA
- Price
- $27.99
- Part Number
- 0252676
- Manufacturer
- PASS & SEYMOUR/LEGRAND
- Quantity Available
- 2
