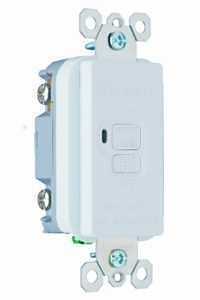

Legrand radiant Series 2087WCCD4 GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back and Side Wirin
no reviews for this product. Login to place a review.
PRODUCT OVERVIEW
The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wallplates that complement today's homes and hospitality setting.
Product Details
Color:White
Current Rating:20 A
Dimensions:1.73 in W x 1.03 in D x 4.2 in H
Grounding Type:Grounded
Material:Thermoplastic
Mounting Type:Screw
Nema Rating:NEMA 5-20R
Number Of Wires:3
Short Circuit Current Rating:10 kA
Voltage Rating:125 V
Wire Size:14 to 10 AWG
Wiring Type:Back and Side
Features
Part of the radiant collection of wiring devices, wallplates and home systems
Rated as a 1-1/2 hp motor control switch
Thinner than competitors' GFCI Receptacles leaves more room for wires in the box
Auto-ground clip assures a positive ground to metal box
Feed-thru wiring configuration allows GFCI to protect downstream
receptacles
Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
Trip indicator light
Two back wire holes per terminal
Ground screw has a back wire clamp for easy installation
Mounting screws are shipped captive in the device and wallplate for easier installation
- U/M
- / EA
- Price
- $35.99
- Part Number
- 0254094
- Manufacturer
- PASS & SEYMOUR/LEGRAND
- Quantity Available
- 2
