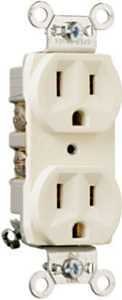

Pass & Seymour CRB5262LA Duplex Receptacle, Nylon/Thermoplastic, Light Almond, 2-Pole, 15 A, 125 V,
no reviews for this product. Login to place a review.
PRODUCT OVERVIEW
Pass & Seymour Duplex Receptacle, 125 V, 15 A, Number of Poles: 2, Number of Wires: 3, Wiring Type: Back, Side, Wire Size: 14 to 10 AWG, NEMA Configuration: 5-15R, Operating Temperature: -40 to 60 deg C, Nylon/Thermoplastic, Light Almond, Dimensions: 3.281 in H x 1.322 in W x 0.78 in D
Product Details
Color:Light Almond
Current Rating:15 A
Dimensions:3.281 in H x 1.322 in W x 0.78 in D
Material:Nylon/Thermoplastic
N E M A Configuration:5-15R
Number of Poles:2
Number Of Wires:3
Operating Temperature:-40 to 60 deg C
Voltage Rating:125 V
Wire Size:14 to 10 AWG
Wiring Type:Back Side
Features
Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
0.032 in thick, brass, triple wipe power contacts for lasting retention Easily accessed break-off, line contact connecting tab for fast, easy split circuit wiring
Impact-resistant nylon face and thermoplastic back body
8 hole internal screw pressure plate back wire terminals accept #10 to #14 AWG solid or stranded copper or copper clad conductors
Terminal compartments isolated from each other for positive conductor containment
Tri-drive terminal and mounting screws
Auto-ground clip assures positive ground
- U/M
- / EA
- Price
- $2.99
- Part Number
- 0252387
- Manufacturer
- PASS & SEYMOUR/LEGRAND
- Quantity Available
- 9
