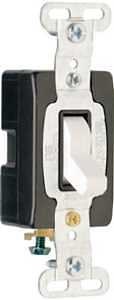

Pass & Seymour CS15AC1WCC8 Series Switch, Blue/White, 1-Poles, 15 A, 120/277 VAC, Side Wire Terminal
no reviews for this product. Login to place a review.
PRODUCT OVERVIEW
Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy-gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.
Product Details
Actuator Type:Cam Spring
Color:Blue/White
Contact Material:Silver Cadmium Oxide
Current Rating:15 A
Dielectric Strength:1500 V
Dimensions:1.32 in W x 1.073 in D x 3.281 in H
Housing Material:Glass-Reinforced Nylon
Number of Poles:1
Temperature Rating:-40 to 115 deg C
Terminal Type:Side Wire
Voltage Rating:120/277 VAC
Features
One-piece brass alloy contact arm for reliable electrical performance One-piece steel strap with integral ground is plated for corrosion resistance
High-strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
Heavy-duty toggle bumpers for smooth and quiet operation
Back body made of glass-reinforced nylon, locking support provides resistance to face and back body separation
Cam designed for fast make with positive break action to minimize arcing and prolong switch life
Oversized silver alloy contacts for longer dependable switch life
Tri-drive terminal and mounting screws
- U/M
- / EA
- Price
- $4.99
- Part Number
- 0252494
- Manufacturer
- PASS & SEYMOUR/LEGRAND
- Quantity Available
- 2
