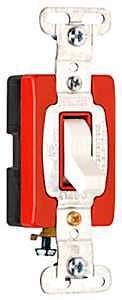

Pass & Seymour CSB20AC1WCC8 Series Switch, 1-Poles, Red/White, 20 A, 120/277 VAC, Back Wire, Side Wi
no reviews for this product. Login to place a review.
PRODUCT OVERVIEW
These switches offer excellent value while meeting federal specification standards. External screw pressure plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.
Product Details
Actuator Type:Cam Spring
Color:Red/White
Contact Material:Silver Cadmium Oxide
Current Rating:20 A
Dielectric Strength:1500 V
Dimensions:1.32 in W x 1.073 in D x 3.281 in H
Housing Material:Glass-Reinforced Nylon
Number of Poles:1
Temperature Rating:-40 to 115 deg C
Terminal Type:Back Wire Side Wire
Voltage Rating:120/277 VAC
Features
One-piece brass alloy contact arm for reliable electrical performance One-piece steel strap with integral ground is plated for corrosion resistance
High-strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
Heavy-duty toggle bumpers for smooth and quiet operation
Back body made of glass-reinforced nylon, locking support provides resistance to face and back body separation
Cam designed for fast make with positive break action to minimize arcing and prolong switch life
Oversized silver alloy contacts for longer dependable switch life
Tri-drive terminal and mounting screws
- U/M
- / EA
- Price
- $5.69
- Part Number
- 0252569
- Manufacturer
- PASS & SEYMOUR/LEGRAND
- Quantity Available
- 2
