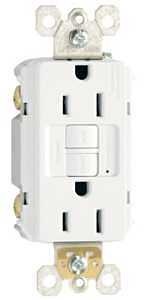

Pass & Seymour radiant Series 1597W3PKCC4 GFCI Duplex Receptacle, Nylon, White, 15 A, 125 VAC, NEMA:

PRODUCT OVERVIEW
The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wallplates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI receptacles installed in the living space.

Product Details
Color:White
Current Rating:15 A
Dimensions:1.62 in W x 1.13 in D x 4.19 in H
Frequency Rating:60 Hz
Material:Nylon
N E M A Configuration:5-15R
Number of Poles:2
Number Of Wires:3
Operating Temperature:-35 to 66 deg C
Voltage Rating:125 VAC
Wire Size:14 to 10 AWG
Wiring Type:Back Side

Features
New external back wire pressure plates
New posted terminal screws for faster installation
Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected Patented shutter system helps prevent improper insertion of foreign objects Redesigned side wire cavity improves speed of side wire installation Feed-thru wiring configuration allows GFCI to protect downstream
receptacles
Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
